Profesenel Transparent LED Skrin Saplaia bilong yu
LiKYLIN Grup i kirapim wok bilong pinisim LED inovasen long rot bilong R&D, COB sos manufakturing, na smatpela saplai sen menesmen. Olsem wanpela ful-spektrum solusen provaida we i gat ol Mini/Micro COB LED displei, ol gutpela DOOH & Rental skrin, na ol nupela AV sistem, mipela i save strongim ol global klaien wantaim ol nupela proses we i kamap long planti yia bilong save.
-
![Adhesive LED Transparent Film Screen]()

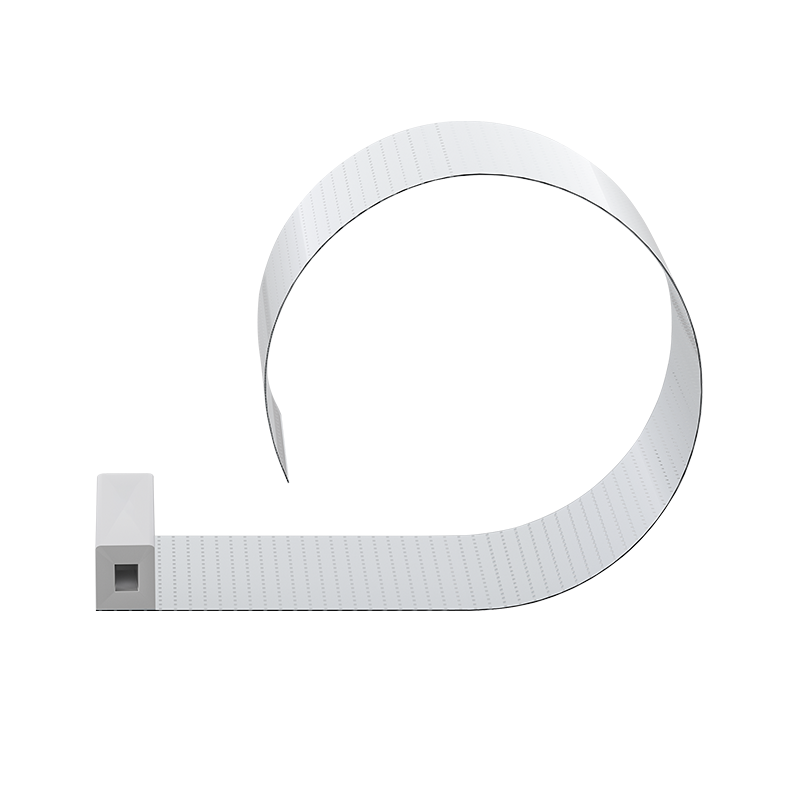

Adhesive LED Transparent Film ScreenXST-KM Series. Pixel Pitch: P3.75, P4, P5. Sais bilong modul (mm): 540x240 / 576x240 / 720x240. Lait: 2500 nits. Angle bilong lukluk: Bikpela o wankain olsem 170 digri. Refresh Reit: 3840HzRitim moa -
![Nanoflex Transparent LED Film]()
Nanoflex Transparent LED FilmXST-KM Series. Pixel Pitch: P6, P7.5, P8. Sais bilong modul (mm): 1000x240 / 1200x240. Lait: 1500 nits. Kontras Resio: 4000:1. Input Voltage: AC110~220V, 50/60HzRitim moa -
![Klia LED Displei]()
Klia LED DispleiXST-KM Series. Pixel Pitch: P10, P15, P20, P30. Sais bilong modul (mm): 1200x240. Lait: 1500 nits. Rot bilong draivim ka: Komon Anod Draivim. Humiditi bilong wok (RH): 10%~90% Nogat kondensesenRitim moa -
![Transparent Glass LED Screen]()
Transparent Glass LED ScreenXST-HQ Series. Pixel Pitch: P2.8, P3.9, P6, P10. Sais bilong modul (mm): 570x320 / 250x1200 / 250x1500. Hevi bilong soim: 5kg/yunit. Lait: 800~6000 nits. Refresh Reit: 3840Hz. Rot bilong draiv: KomonRitim moa -
![Transparent Glass LED Screen Wall]()
Transparent Glass LED Screen WallXST-HT Series. Pixel Pitch: P3.9, P10.4. Sais bilong kebinet (mm): 1000x500. Ol samting bilong kebinet: Aluminium Profail. Lait: Bikpela o wankain olsem 5000 nits. Transperensi: Bikpela o wankainRitim moa -
![Transparent LED Video Screen]()
Transparent LED Video ScreenXST-HT Series. Pixel Pitch: P12.5, P15.6. Sais bilong modul (mm): 1000x1000. Hevi bilong soim: 16kg/yunit. Lait: Bikpela o wankain olsem 6000 nits. Refresh Reit: 3840Hz. Angle bilong lukluk: 160Ritim moa
Bilong wanem yu mas makim mipela
Kwaliti Kontrol
Mipela i holim moa long 60 global teknoloji peten na mipela i operetim wanpela intelijen, otometik faktori we i bihainim ISO 14064 setifikesen standet, na bihainim strong ol sastenebel prodaksen praktis.
Kastomaisesen
Mipela i save givim ol sevis we i stret long ol projek, we i karamapim sais bilong skrin, piksel pits, straksa disain, kontrol sistem, na ol aplikesen senario. Ol solusen bilong mipela i stret long ol spesifik instalesen envairomen na ol wok rikwaemen.
Ol Gutpela Ikwipmen
Mipela i gat planti gutpela prodaksen ikwipmen, olsem ol masin bilong putim SMT, ol masin bilong katim CNC, ol masin bilong pasim ol 'mold', ol masin bilong sekim ol 'optical inspection' (AOI) pastaim long 'reflow soldering', ol 'automated PCB pick-and-place systems, na ol 'post-printing conveyor systems. Dispela gutpela ikwipmen i karamapim olgeta bikpela hap bilong wokim ol prodak, na i save mekim gutpela wok long prodaksen na kwaliti bilong prodak.
Teknikel Sapot
Mipela i save givim profesenel teknikel sapot long olgeta taim bilong projek, na tu, disain bilong solusen, konfiguresen bilong sistem, stia bilong instolesen na komisin, na ol sevis bilong lukautim bihain long salim, na mekim projek i kamap gut na wok gut.
Spesifikasen
|
Spesifikasen |
LED skrin we i klia |
|
Pixel Pitch Options |
2.8–5.6 mm / 3.9–7.8 mm / 7.8–10.4 mm |
|
Transperensi Reit |
~50%–80% lait transmisen |
|
Lait |
3000–5500 cd/m2 (yu ken stretim) |
|
Kain LED |
Ol SMD LED bilong ausait/insait |
|
Refresh Reit |
Bikpela o wankain olsem 1920 Hz-3840 Hz |
|
Angle bilong lukluk |
Bikpela lukluk long horisontel / vertikal |
|
Sais bilong Kebinet |
1000 × 500 mm o kastom |
|
Kontrol Sistem |
Standet LED kontrol kompatibiliti |
|
Mentenens Akses |
Sevis long fran na baksait |
|
Ol kain aplikesen |
Wokim ol glas wol, ol stua fran, ol 'atrium' |
Ol bikpela samting bilong 'Transparent LED Screen'
Transperensi
Bikpela samting bilong 'transparent LED' skrin em i strong bilong ol long holim bikpela 'transparency', planti taim i save stap namel long 60% na 95%. Dispela i larim ol long bung gut wantaim ol samting i stap klostu long ol, na dispela i mekim ol i gutpela long ol spes we i bikpela samting long lukautim op na luksave.
Laitweit disain
Ol 'transparent LED' skrin i save lait moa long ol 'traditional LED' displei, bikos ol i gat liklik disain na ol i no yusim tumas ol samting. Slim profail na modular straksa bilong ol i mekim ol i isi long putim na lukautim, maski long ol kompleks envairomen.
Hai-End Aesthetic
Wantaim gutpela lukluk bilong ol, ol 'transparent LED' skrin i save givim gutpela lukluk. Ol i gutpela tru long ol bisnis we i laik kamapim wanpela 'futuristic' o 'sophisticated ambiance', moa yet long ol bikpela stua na ol gutpela ples.
"Transparensi" ifek bilong ol transparent LED skrin i kamap long rot bilong disainim skrin straksa long larim lait bilong san i go insait long ol spes namel long ol LED strip, na kamapim lukluk bilong wanpela see-skrin. Ol bikpela rot bilong mekim wok em:
Lait i save go insait long ol spes:Ol i save putim ol spes namel long ol LED strip, we i save kisim 50% i go inap 90% bilong olgeta skrin eria. Ol dispela spes i no gat ol LED samting, na dispela i larim lait bilong san i go insait na i kamapim 'transparency effect'.
Visual Fusion Effect bilong Human Eyes:Long wanpela mak bilong lukluk (planti taim moa long 3 mita), ol spes namel long ol LED lait poin i save "pulapim" long lukluk bilong man, na larim ol manmeri i lukim ol samting i soim na bekgraun envairomen long wankain taim, na dispela i kamapim wanpela 'floating display effect'.
Transparent LED Screen Vs. Tradisenel LED Skrin
|
Ol samting |
LED skrin we i klia |
Ol tumbuna LED skrin |
|
Lukluk na Disain Fleksibiliti |
Gutpela, liklik disain wantaim bikpela klia; i go insait long ol nupela, op spes. |
Konvensenel, strongpela disain; em i gutpela long ol piksa we i gat strongpela -impak long ol bikpela fomat. |
|
Aplikesen Versatility |
Em i gutpela long ol stua, ol sorum, na ol ples we i nidim lukluk i op. |
Em i gutpela long ol wok insait/ausait olsem ol 'billboard', ol 'stadium', na ol iven. |
|
Visual Impact na Transperency |
Em i save skelim ol gutpela piksa wantaim ol samting yu ken lukim, na i gutpela tru long soim ol prodak. |
Putim ol samting we i gat bikpela - definisen wantaim ful opasiti, na mekim gutpela kala kontras. |
Wokim wanpela klia LED skrin
Ol bikpela samting bilong 'transparent LED' skrin em: lait bod, pawa saplai, kontrol kad, konekting lait. Bikpela wok bilong wokim 'transparent LED' skrin em i olsem:
SMD proses
Ol i pasim ol LED lam bis long lait strip bilong PCB long kamapim ol piksel. Pixel pitch we planti taim yumi save tok em i longwe namel long tupela 'lamp beads' we i stap klostu, na resolusen em i namba bilong ol 'lamp beads' long wan wan yunit eria. Taim yu wok long stretim, lukluk gut long lam, noken pasim em i go daun, na noken pasim liklik.
Solderim
Sekim hap bilong lait bod long lukim sapos i gat lait i lus o i no gat gutpela solder.
Putim freim
Stretim ol LED bar na freim na skruim ol long ples bilong ol. Wok bilong kamapim dispela 'transparent LED screen driver board' em: SMD, 'drive cable connector', 'power connector welding', 'capacitor welding', na 'driver IC welding'.
QC tes
Ol i putim draiva bod insait long lait bod, ol i solderim, na ol i mekim QC tes. Dispela i gat 72-aua 'lighting aging test', we i gat 48 aua bilong ret, wait, blu, na grin lait, long sekim sapos i no gat gutpela 'solder' o ol 'dead lamp beads' bilong stretim na senisim. Ol i save pilaim vidio inap 24 aua moa. Sapos ol i painim olsem kala o lait i no wankain, bai ol i stretim 'balance' bilong en. Mekim gut olsem LED displei i stap gut na i wok gut pastaim long salim i go.
Putim wanpela klia LED skrin
Instolesen long plua-sanap
Planti taim ol i save yusim long ol glas displei windo, ol eksibisen hol, na ol narapela samting, skrin eria i no bikpela na hait bilong en i no antap. Em i ken stretim tasol long daunbilo. Sapos mak bilong skrin i antap, em i gutpela long stretim skrin i go antap na i go daun bihain long skrin bilong mekim skrin i stap strong.
Instolesen bilong fremwok
Fremwok bilong transparent LED skrin i pas stret long glas keten wol kil yusim ol komposit bolt, we i nidim liklik hap ain straksa tasol na ol i save yusim moa yet long wok bilong wokim ol glas keten wol.
Instolesen bilong apim samting
Dispela rot bilong putim i mas gat gutpela ples bilong putim, olsem wanpela 'beam' antap. Ol standet hap bilong hangamap ol i ken yusim long ol simen siling insait long haus, na longpela bilong ol hap bilong hangamapim i dipen long kondisen bilong sait. Ol i save apim ol rop insait long haus wantaim ol rop ain, na ol i save bilasim ol ain paip ausait long wankain kala olsem skrin.
Ol kain kain wok bilong Transparent LED Skrin
Ol sorum bilong ol gutpela samting
Ol sorum bilong kar, ol stua bilong salim ol su, ol 'aesthetics' - olgeta spes bilong soim ol prodak i ken yusim ol 'transparent LED' skrin long mekim ol samting i luk nais na pulim ol kastoma.
Ol ritel sen
Ol stua i ken yusim ol 'transparent LED' skrin long senisim ol 'conventional' posta. Pasin bilong senisim ol samting i helpim long mekim gutpela edvetaismen na i soim ol promosen na ol iven long gutpela rot.
Ol haus kaikai na ol haus bung
Ol senta bilong kibung, ol haus kaikai, o ol haus kaikai i save yusim ol LED skrin we i klia tru long mekim ol bilas i kamap gutpela moa, na dispela i save kamapim ol bikpela samting na pulim ai bilong ol manmeri.
Ol benk, ples balus, ol bung, na ol stej
Ol transparent LED skrin i ken stap insait long kain kain samting olsem ol benk, ol ples balus, ol laiv iven, na ol stej. Ol i no save givim gutpela lait tasol, ol i save strongim 'brand positioning' na kamapim gutpela luksave long ol yusa.
Ol sevis bilong stretim ol samting
Long inapim gut ol kain kain nid bilong ol kain kain indastri na kastoma, mipela i ken stretim ol 'transparent LED screen' profesenel solusen long ol spesifik aplikesen senario na ol spesel rikwaemen bilong yu. Sapos yu laik kisim moa infomesen o sapot, plis yu ken toktok wantaim mipela.
Paketim na salim
|
Pakejing |
Ol bokis ol i wokim long diwai o ol kastom paket |
|
Ol rot bilong trenspot |
Rot trenspot, rel trenspot, solwara trenspot |
Ol samting bilong wokim samting
FAQ
Olsem wanpela bilong ol profesenel transparent LED skrin manifakta na saplaia long Saina, mipela i gat ol gutpela prodak na liklik prais. Plis stap isi long salim 'wholesale' transparent LED skrin i stap hia long faktori bilong mipela. Long kisim sevis na fri sempel, yu ken toktok wantaim mipela nau.
